Stainless Hlau Round Bar: Kub-Rolled vs Cold-Drawn - Uas rau Koj Daim Ntawv Thov? - Kev Paub

Xaiv txias - kos (CD) stainless hlau puag ncig bar thaum koj xav tau nruj qhov ntev kam rau ua (± 0.05–0.13 mm), lub ci ntsa iab tiav (Ra 0.4–1.6 μm), lossis siab zog tawm los rau qhov tseeb machined qhov chaw, shafts, valve stems, los yog fasteners - feem ntau 3 hli mus rau 1 mm.

Stainless Steel Round Bar Hot-Rolled vs Cold-Drawn

Xaiv kub -rolled (HR) puag ncig bar thaum koj xav tau qhov siab tshaj plaws ductility thiab cuam tshuam toughness, qis residual stress rau vuam los yog ntxiv tsim, tus nqi raw khoom qis tshaj, los yog diameters saum 100-150 mm qhov txias txias yuav ua tsis tau. Raws li txoj cai yooj yim: yog tias ib feem yuav raug machined nrog tsawg kawg nkaus tshem tawm, qhia kom txias - kos; yog hais tias ib feem yuav welded, forged, los yog loj dua 100 mm txoj kab uas hla, qhia kub - dov (annealed).

Taug kev mus rau hauv txhua lub khw muag khoom, lub khw muag khoom, lossis cov nroj tsuag fastener thiab nug dab tsi stainless hlau bar lawv siv, thiab koj yuav pom sai sai tias 'stainless steel round bar' tsis yog ib qho khoom lag luam - nws yog ob qho khoom siv sib txawv uas tshwm sim los sib faib cov tshuaj muaj pes tsawg leeg. Kub- dov (HR) thiab txias- kos (CD) stainless hlau puag ncig bar ntawm qib zoo tib yam - hais tias, 316L - tuaj yeem sib txawv ntawm lub zog tawm los ntawm ib qho ntawm ob, nyob rau hauv qhov chaw tiav los ntawm ib qho ntawm kaum, thiab nyob rau hauv dimensional kam rau ua los ntawm ib qho ntawm tsib.

Qhov kev sib txawv no tseem ceeb heev rau kev yuav khoom, tsim qauv, thiab kev txiav txim siab tsim khoom, tab sis nws feem ntau saib xyuas ntawm kev yuav khoom uas tsuas yog qhia '316L round bar' yam tsis tau hais txog qhov xwm txheej. Qhov tshwm sim yog cov khoom siv tsis sib xws, qhov kev xav tsis zoo ntawm machining tus cwj pwm, thiab qee zaum cov khoom ua tsis tau raws li qhov xav tau ntawm kev tsim lub zog vim yog qhov tsis raug.

Phau ntawv qhia no qhia meej, pov thawj-raws li kev sib piv ntawm kub- dov thiab txias- kosstainless hlau round barthoob plaws txhua qhov loj me uas cuam tshuam rau cov kev qhia tshwj xeeb thiab kev yuav khoom: kev tsim cov txheej txheem lawv tus kheej, cov khoom siv kho qhov muag, qhov ntev ntev thiab qhov ua tiav, siv tau ASTM thiab ASME cov qauv, kev siv cov qauv xaiv xaiv matrix, tus nqi thiab kev coj noj coj ua- lub sijhawm txiav txim siab, qib muaj, thiab cov ntawv pov thawj zoo.

Yuav kom nkag siab tias yog vim li cas kub- dov thiab txias- kos bar coj txawv txawv, koj yuav tsum nkag siab tias lub cev tshwm sim li cas rau cov hlau sab hauv cov qauv siv lead ua thaum txhua tus txheej txheem. Qhov no tsis yog kev lag luam sib txawv - nws yog qhov tseeb metallurgical nrog ncaj qha, ntsuas qhov tshwm sim.

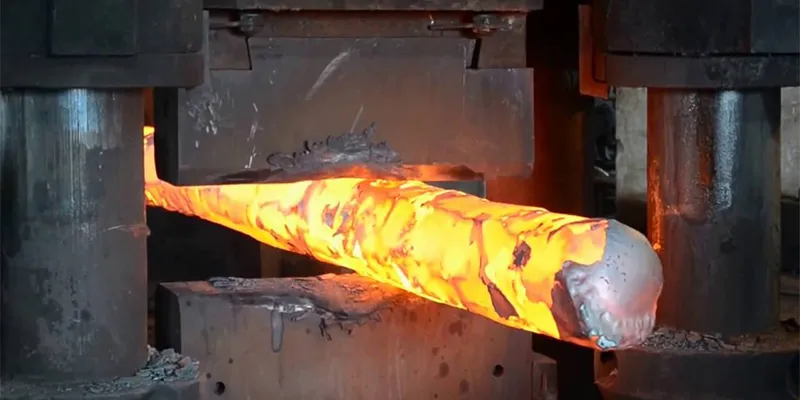

Hot Rolling and Cold Drawing Processes

Kub Rolling: Sib sau ua ke saum qhov ntsuas kub ntawm Recrystallisation

Kub dov yuav siv sij hawm ib ntus - nrum billet thiab hla nws los ntawm ib tug series ntawm grooved rolls thaum cov hlau yog rhuab mus rau 1100-1250℃- zoo tshaj lub recrystallisation kub ntawm stainless hlau. Ntawm qhov ntsuas kub no, cov hlau yog yas heev (yooj yim deformed) thiab, qhov tseem ceeb, hom tshiab- cov nplej dawb tsis tu ncua thiab hloov cov nplej deformed raws li cov khoom siv dov. Cov txheej txheem no - hu ua dynamic recrystallisation - txhais tau hais tias txawm ntau npaum li cas lub bar yog squeezed thiab elongated thaum dov, lub kawg grain qauv yog equiaxed (roughly spherical, uniform nyob rau hauv tag nrho cov lus qhia) es tsis stretched.

Qhov tshwm sim: kub-rolled bar, txawm tias nws tau dhau los ntawm kev siv tshuab deformation, xaus rau hauv ib qho xwm txheej zoo ib yam li annealed (kub-kho, kev ntxhov siab-relieved) cov ntaub ntawv - mos, ductile, thiab cov khoom uas tseem ceeb tib yam tsis hais txog qhov kev taw qhia twg koj kuaj). (iso

Cold Drawing: Ua hauv qab qhov ntsuas kub ntawm Recrystallisation

Kev kos duab txias yuav siv sij hawm kub -rolled bar (tam sim no nws nyob ze - qhov kawg loj) thiab rub nws los ntawm qhov tuag nrog me me txoj kab uas hla, ntawm chav tsev kub. Vim tias tsis muaj cua sov los ua kom recrystallisation, cov nplej tsis hloov pauv - lawv tsuas yog ncab thiab elongate nyob rau hauv cov kev taw qhia lub bar yog rub. Qhov no yog hu ua strain hardening los yog ua hauj lwm hardening, thiab nws muaj ob qho tib si cuam tshuam: nws tsub kom lub zog thiab hardness ntawm cov hlau (vim lub elongated nplej thiab nce dislocation ceev tiv thaiv ntxiv deformation), thiab nws txo cov ductility (vim hais tias cov hlau twb siv ntau npaum li cas ntawm nws lub peev xwm deform plastically).

Qhov tshwm sim: txias-taws bar tawm los ntawm cov tuag muaj zog, nyuaj, thiab nrog ntau smoother thiab ntau dimensionally meej nto tshaj qhov kub -rolled bar uas mus rau hauv - tab sis nws yog tsawg ductile, muaj tseem ceeb xauv- nyob rau hauv residual kev nyuaj siab, thiab muaj directional (anisotropic. bar) raws li cov khoom ntawm barrier vim hais tias nws yog ductile.

Qhov yooj yim - lus piv txwv: xav txog qhov kub dov zoo li kneading khob cij hauv chav ua noj sov - koj tuaj yeem nyem thiab ncab nws ntau npaum li koj nyiam, thiab lub khob noom cookie sab hauv yog mos thiab sib xws vim nws sov thiab pliable. Kev kos duab txias yog zoo li stretching txias taffy - nws tau thinner thiab tougher, tab sis yog tias koj ncab nws deb dhau los yog ceev heev, nws yuav txhav, muaj kev ntxhov siab sab hauv, thiab yuav tsim kua muag. Lub 'sov mov paj' (kub-kub) nyob twj ywm mos thiab zam txim; lub 'txias taffy' (txias-kos) ua muaj zog tab sis nkig nyob rau hauv kev sib piv.

Cov lus hauv qab no muab ib theem-los ntawm- theem sib piv ntawm kub- dov thiab txias- kos cov txheej txheem tsim khoom, qhia raws nraim qhov twg thiab vim li cas ob cov khoom sib txawv ntawm qhov pib pib.

Manufacturing Process Comparison

Table 1: Manufacturing Process Sib piv - Kub-Rolled vs Cold-Drawn Stainless Hlau Round Bar

Txheej txheem theem	Kub-Rolled (HR) Round Bar	Txias-Drawn (CD) Round Bar
Pib Khoom	Nruam -ntxuav billet lossis ingot	Kub-rolled bar (siv raws li feedstock rau kos duab)
Ua Haujlwm Kub	1100-1250℃(siab dua recrystallisation kub)	Chav tsev kub (20-30 degree, ambient)
Txoj kev tsim	Bar hla dhau ntawm cov grooved yob uas nce txoj kab uas hla thaum kub thiab yas	Bar yog rub (kos) los ntawm qhov tuag ntawm txoj kab uas hla me dua li qhov pib bar; tsis muaj kev sib hloov, ntshiab tensile deformation
Kev Txo Qhov Loj Ib Leeg	15-30% txoj kab uas hla txo ib dov dhau; ntau dhau (8–15) kom ncav cuag qhov kawg	10–25% hla- ntu ntu txo ib qho kev kos; feem ntau 1-3 dhau los ntawm HR bar
Grain Structure Result	Dynamic recrystallisation tshwm sim tsis tu ncua; equiaxed nplej; tsis muaj qhov seem ua haujlwm txias; annealed-xov xwm zoo li dov	Cov nplej elongate nyob rau hauv kev taw qhia kos duab; tseem ceeb strain hardening (txias ua hauj lwm); dislocation ceev heev nce
Tshaj tawm -Kev kho cua sov	Feem ntau muab raws li - dov los yog nrog lub teeb anneal; tag nrho cov tshuaj anneal xaiv rau ASTM A276	Kev ntxhov siab -relief anneal qee zaum siv; tag nrho anneal yuav tshem tawm qhov txias - ua hauj lwm lub zog muaj txiaj ntsig thiab tsis tshua siv tshwj tsis yog tias tau teev tseg
Surface Finish (zoo)	Dub / ntxhib zeb nplai tag tshwj tsis yog pickled; Ra 6.3–12.5 μm as- dov; pickled tiav txhim kho rau Ra 3.2-6.3 μm	Ci, du machined -zoo li tiav los ntawm kev sib cuag tuag; Ra 0.4-1.6 μm raug; ho superior nto tiav
Dimensional kam rau ua (ib txwm, ib ASTM)	ASTM A276: ± 0.4 hli mus rau ± 1.0 hli nyob ntawm qhov loj me (qhov siab dav)	ASTM A484: ± 0.05 hli rau ± 0.13 hli nyob ntawm qhov loj me (ntau nruj dua)

Qhov chaw:ASM International Handbook Volume 14A 'Metalworking: Bulk Forming' (ASM International, Materials Park OH, 2005); ASM Phau Ntawv Phau Ntawv Volume 1 'Properties and Selection: Irons, Steels, and High-Performance Alloys' (Chapter: Wrought Stainless Steels); ASTM A276 / A276M (kub-tiav bar specification, tam sim no tsab); ASTM A484/A484M (txias-tiav bar kev cai, tam sim no tsab); Outokumpu 'Handbook of Stainless Steel' (2013 tsab, Tshooj 5: Kev Tsim Khoom).

Qhov sib txawv tshaj plaws ntawm cov khoom sib txawv ntawm kub - dov thiab txias - kos stainless hlau bar yog yield zog. Qhov sib txawv no cuam tshuam ncaj qha rau kev suav tsim qauv, kev ntsuas qhov nrawm nrawm, thiab kev ua haujlwm ntawm ncej deflection. Txawm li cas los xij, lub zog nce tsis pub dawb - nws los nrog kev txo qis hauv kev ua kom muaj zog thiab cuam tshuam qhov hnyav uas yuav tsum tau txiav txim siab rau cov ntawv thov cuam tshuam nrog kev thauj khoom poob siab, qis - kev pabcuam kub, lossis ntxiv cov yas deformation.

Cov lus hauv qab no nthuav qhia cov neeg sawv cev cov cuab yeej cuab tam cov ntaub ntawv rau 316L stainless hlau - qib feem ntau teev rau ob qho tib si kub - dov thiab txias - kos bar - hauv txhua qhov xwm txheej.

Table 2: Mechanical Property Comparison - Kub-Rolled (Annealed) vs Cold-Drawn 316L Stainless Hlau Round Bar

Mechanical Property (316L SS)	Kub-Rolled (Annealed)	Txias-Drawn (Raws li-Drawn)
0.2% Tawm Zog (MPa)	170-205 MPa	310-550 MPa (1.8-2.7 × HR)
Qhov kawg Tensile Strength (MPa)	485-620 MPa	620–{1}} MPa (1.2–1.4 × HR)
Elongation ntawm Break (%)	40–55%	12-25% (tsawg kawg ductility)
Hardness (Brinell HB)	150-190 HB	200-260 HB (zoo hnav tsis kam)
Charpy Impact Toughness	High (typically >150 J ntawm chav tsev kub)	Txo (kev taw qhia toughness; qis transverse cuam tshuam qhov tseem ceeb)
Residual Stress Level	Tsawg - kev ntxhov siab-relieved los ntawm recrystallisation thaum ua haujlwm kub	Siab - kev ntxhov siab tseem ceeb los ntawm kev kos duab; tuaj yeem ua rau distortion ntawm machining
Machinability Rating (tus txheeb ze)	Zoo - tab sis ua tau - nce ntug nyiam ntawm mos austenitic qauv	Zoo heev - hardness siab dua txo ua- nce ntug; ntxuav nti tsim; zoo dua nto tiav achievable
Fatigue Strength (tus txheeb ze)	Lub hauv paus	Siab dua nyob rau hauv axial loading kev taw qhia vim muaj ntau dua yield; qis nyob rau hauv transverse kev taw qhia vim directional grain flow

Qhov chaw:ASTM A276/A276M Table 2 (kev xav tau ntawm cov cuab yeej cuab tam, kub-tiav thiab annealed mob); ASTM A484 / A484M (txias-tiav bar kev taw qhia cov cuab yeej cuab tam); Outokumpu Stainless 'Phau Ntawv ntawm Stainless Hlau' Tshooj 5.4 (Cov Khoom Siv Kho Mob Tom Qab Txias Ua Haujlwm, 2013 tsab); Sandvik Materials Technology 'Cold Working Effects on Austenitic Stainless Steel' Technical Reference SE-CW-02 (2020); ASM Phau Ntawv Phau Ntawv Volume 1 (cov cuab yeej cuab yeej cuab tam rau 316/316L hauv ntau yam).

Lub zog -kev ua lag luam ductility-tawm piav qhia: Raws li kev ua haujlwm txias nce (feem pua txo ntau dua hauv cov txheej txheem kos duab), lub zog tawm los nce siab thaum elongation ntog. Ib qho bar kos nrog 10% cheeb tsam txo qis yuav qhia tau tias muaj zog ntawm 310 MPa nrog elongation nyob ib ncig ntawm 35%; tib qib kos nrog 30% cheeb tsam txo qis tuaj yeem pom muaj zog tshaj 500 MPa nrog elongation poob mus rau 15% lossis qis dua.

Qhov kev sib raug zoo no txhais tau hais tias 'txias- kos' tsis yog ib qho khoom ruaj ruaj teeb tsa - qib ntawm kev ua haujlwm txias (feem ntau teev raws li qhov feem pua txo qis lossis los ntawm lub hom phiaj hardness / lub zog) yuav tsum tau teev nyob rau hauv daim ntawv xaj khoom rau cov ntawv thov tseem ceeb.

Cov lus qhia tseeb ntawm kev tswj hwm tus qauv ASTM yog qhov tseem ceeb rau kev ua kom pom tseeb thiab kev lees paub zoo. Ob lub qauv tseem ceeb - A276 rau kub-tiav bar thiab A484 rau txias- tiav bar - nquag siv ua ke, nrog A276 muab cov khoom siv tshuaj lom neeg thiab khoom siv rau qib, thiab A484 muab qhov ntev ntev thiab ua tiav cov kev xav tau rau qhov txias- tiav lawm.

Hot-Rolled Bar and A484 Cold-Finished Bar Standards

Table 3: Siv tau ASTM / ASME Cov Qauv rau Kub-Rolled thiab Cold-Drawn Stainless Hlau Round Bar

Txheej txheem	Txuj	Scope	Cov Lus Qhia Tseem Ceeb
Kub-Rolled	ASTM A276 / A276M ASTM	Stainless hlau tuav thiab cov duab (kub tiav)	Tshuaj muaj pes tsawg leeg; mechanical zog ib Table 1; tiav: kub ua hauj lwm, annealed, pickled, los yog ntxhib tig; Kev kam rau siab rau ASTM A484
Kub-Rolled	ASME SA-276	ASME daim iav ntawm A276 rau siab- khaws cov ntawv thov	Zoo tib yam rau A276 nrog ASME Boiler thiab Pressure Vessel Code Tshooj II Tshooj A cov kev cai tswj hwm ntxiv
Txias-Drawn / Cold-Tiav lawm	ASTM A484 / A484M	Cov kev cai dav dav rau cov khaub thuas- tiav cov kab thiab cov duab	Umbrella standard cover dimensional tolerances, straightness, and deg finish for ALL txias-ua tiav SS bar; siv ua ke nrog A276
Txias-Drawn / Cold-Tiav lawm	ASTM A582/A582M	Dawb-machining stainless hlau tuav (txias-tiav)	Npog Hom 303, 303Se pub dawb- cov qib machining tshwj xeeb tsim los rau siab - ceev tsis siv neeg ntsia hlau tshuab ua haujlwm
Ob leeg (Bar General)	ASTM A479 / A479M	Stainless thiab cua sov-resisting tuav rau boilers thiab siab hlab ntsha	Siv rau ob qho tib si kub- dov thiab txias- tiav bar destined rau siab hlab ntsha Cheebtsam; NDE nruj dua thiab kuaj dua A276
Ob leeg (Forging Quality)	ASTM A314 / A314M / ASTM A314M / ASTM A314 / ASTM A314 / ASTM A314 / ASTM A314 / ASTM A314 / ASTM A314 / ASTM A314 / ASTM A314 / ASTM A314 / A314M / ASTM A314 / ASTM A314 / ASTM A314 / A314M / ASTM A314 / ASTM A314 / ASTM A314 / ASTM A314 / A314M / ASTM A314 / ASTM A314 / ASTM A314 / ASTM A314 / ASTM A314 / ASTM A314 / ASTM A314 / ASTM A314 / ASTM A314 / ASTM A314 / ASTM A314 / ASTM A314 / ASTM A314) thiab ASTM A314 / A314M	Stainless hlau billets thiab tuav rau forging	Qhia meej txog qhov yuav tsum tau ua ntawm billet / bar zoo thaum cov khoom yuav tom qab forged rau hauv cov khoom
Aerospace Zoo	AMS 5639 / AMS 5645 (316/316L)	Aerospace bar, hlau, forging Tshuag	Tighter chemistry, inclusion rating (ASTM E45), thiab txhua yam khoom uas yuav tsum tau muaj tshaj li ASTM qib kev lag luam; feem ntau txias -ua tiav

Qhov chaw:ASTM A276 / A276M 'Standard Specification for Stainless Steel Bars and Shapes' (tam sim no tsab, ASTM International, West Conshohocken PA); ASTM A484 / A484M 'Standard Specification for General Requirements for Stainless Steel Bars, Billets, thiab Forgings' (tam sim no tsab); ASTM A582/A582M 'Standard Specification for Free-Machining Stainless Steel Bars' (tam sim no tsab); ASTM A479 / A479M 'Standard Specification rau Stainless Hlau Bars thiab Shapes siv nyob rau hauv boilers thiab lwm yam siab Vessels' (tam sim no tsab); ASTM A314 / A314M 'Standard Specification rau Stainless Hlau Billets thiab Bars forging' (tam sim no tsab); SAE AMS 5639 / AMS 5645 (Aerospace bar specifications, kev hloov kho tam sim no).

Yuav ua li cas nyeem cov lus qhia kom raug: Daim ntawv xaj kom raug tag nrho rau qhov txias- kos 316L bar nyeem: 'Stainless Steel Round Bar, Qib 316L, ASTM A276/A484, Mob: Txias-Drawn, Txoj kab uas hla: 25.4 mm{0.08mm, mills (Colrawn) ± 0.08 hli Daim ntawv tshaj tawm kev xeem rau ASTM A484 Tshooj 12.' Qhov no qhia txog qib (A276), qhov loj me thiab tiav tus qauv (A484), qhov xwm txheej meej (txias-kos, tsis xav), qhov siab ntev, thiab cov ntaub ntawv yuav tsum tau ua. Kev tshem tawm cov ntsiab lus ntawm cov xwm txheej yog qhov yuam kev tshwj xeeb tshaj plaws thiab ua rau cov neeg xa khoom xa khoom txawm li cas los xij lawv muaj nyob rau hauv Tshuag - uas tej zaum yuav tsis phim lub hom phiaj tsim.

Tshaj li lub zog, qhov sib txawv ntawm kev lag luam tseem ceeb tshaj plaws ntawm kub - dov thiab txias - kos bar yog qhov loj me thiab qhov zoo. Qhov sib txawv no muaj qhov cuam tshuam ncaj qha, muaj nuj nqis ntawm cov nqi qis qis thiab lub sijhawm - thiab feem ntau yog qhov kev txiav txim siab ntawm cov khoom siv rau cov khoom siv precision.

Table 4: Dimensional Tolerance thiab Surface Finish Comparison los ntawm Diameter Range

Txoj kab uas hla	HR kam rau ua (mm)	CD kam rau ua (mm)	HR Nto Ra (μm)	CD Nto Ra (μm)
6-10 hli	±0.20	±0.05	6.3–12.5	0.4–0.8
10-25 hli	±0.30	±0.08	6.3–12.5	0.4–1.0
25-50 hli	±0.40	±0.10	6.3–12.5	0.8–1.6
50-80 hli	±0.50	±0.13	12.5–25	0.8–1.6
80-150 hli	±0.75	Tsawg CD muaj nyob saum 100mm *	12.5–25	N/A*
150-300 hli	±1.00	Tsis muaj kev lag luam	12.5–25	N/A

Qhov chaw:ASTM A484/A484M Table 2 (txias-tiav bar txoj kab uas hla tolerances, tam sim no tsab); ASTM A276/A276M Table 4 (kub-tiav bar txoj kab uas hla tolerances, tam sim no tsab); Outokumpu Stainless 'Bar Products Technical Data' (2022 tsab); Sandvik Materials Technology 'Round Bar Dimensional Standards Comparison' SE-BAR-03 (2021). *Faj seeb: txias- kos bar saum toj li ntawm 100 mm txoj kab uas hla dhau los ua qhov ua tsis tau zoo vim muaj kev txwv tsis pub rub lub rooj zaum; feem ntau mills tsis muab CD bar siab tshaj 100-150 mm thiab tshwj xeeb txiav txim lub sij hawm siv lead ua thaum muaj.

Vim li cas kev kam rau siab yog qhov tseem ceeb rau kev lag luam machining: Lub precision ncej xav tau qhov kawg ntawm txoj kab uas hla ntawm 24.95-25.00 mm tuaj yeem raug machined ncaj qha los ntawm txias -kos bar ntawm 25.0 mm ± 0.08 mm kam rau ua nrog tsawg lossis xoom tig ua haujlwm - muaj peev xwm tshem tawm tag nrho cov kauj ruam machining. Tib qhov ua los ntawm kub- dov bar ntawm 25.0 mm ± 0.40 mm kam rau ua yuav tsum tig kom tshem tawm mus txog 0.8 mm ntawm cov khoom lag luam kom lav qhov kawg qhov ntev, ntxiv lub sijhawm tshuab, cov cuab yeej hnav, thiab cov khoom seem. Rau siab- ntim ntau lawm, qhov sib txawv no tuaj yeem sawv cev rau feem ntau ntawm cov nqi sib txawv ntawm HR thiab CD raw khoom.

Nrog rau kev sib txawv ntawm cov txheej txheem tsim, cov lus nug tswv yim rau cov engineers thiab pawg neeg yuav khoom yog: qhov xwm txheej twg yuav tsum tau teev tseg rau daim ntawv thov? Cov kev txiav txim siab hauv qab no suav nrog yim feem ntau ntawm cov ntawv thov thiab muab cov lus pom zoo, kev pom zoo rau txhua tus.

Table 5: Daim Ntawv Thov Kev Txiav Txim Matrix - Kub-Rolled vs Cold-Drawn Stainless Hlau Round Bar

Daim ntawv thov	Pom zoo	Hom Loj	Vim li cas
Precision shafts (tswj, motors)	Txias-Drawn	6-80 hli	Tight tolerance txo los yog tshem tawm cov machining; du nto txhim kho cov kabmob / foob kev sib cuag; siab yield zog resists ncej deflection
CNC ntsia hlau tshuab qhov chaw (fasteners, fittings)	Txias-Drawn	3-50 hli	Dimensional sib xws tseem ceeb rau cov khoom siv pub khoom noj tsis siv neeg; superior machinability ntawm txias - ua hauj lwm qauv; Yam tsawg kawg nkaus yuav tsum tau tshem tawm
Loj - txoj kab uas hla forging billets	Kub-Rolled	>150 hli	Cov txheej txheem CD tsis tuaj yeem siv nyiaj txiag lossis siv lub cev zoo tshaj li ~ 100-150 hli txoj kab uas hla; HR yog qhov kev xaiv lag luam nkaus xwb ntawm qhov loj me
Cov khoom siv ntawm lub nkoj siab (dov / forged)	Kub-Rolled (annealed)	Txhua qhov ntau thiab tsawg	Code-stamped siab hlab ntsha Cheebtsam xav tau kev kwv yees, isotropic txhua yam khoom; Kev ua haujlwm txias qhov kev ntxhov siab yog qhov tsis xav tau rau ASME Tshooj VIII cov khoom
High - lub zog fasteners (bolts, studs)	Txias-Drawn	6-50 hli	Lub zog muaj zog ntau dua ntawm qhov txias- ua haujlwm bar ua rau me me fastener loj rau tib qhov kev ntaus nqi; A193 B8M Chav Kawm 2 tshwj xeeb siv txias - ua haujlwm 316 bar
Welded fabrications yuav tsum tau ua ntxiv	Kub-Rolled (annealed)	Txhua qhov ntau thiab tsawg	Cov ductility siab dua thiab qis dua qhov kev ntxhov siab txo qis kev cuam tshuam thiab kev pheej hmoo tawg thaum lub sij hawm txuas ntxiv thiab khoov ua haujlwm
Cryogenic / qis-cov khoom siv kub	Kub-Rolled (annealed)	Txhua qhov ntau thiab tsawg	Ntau dua Charpy cuam tshuam toughness ntawm annealed austenitic qauv yog qhov tseem ceeb rau cryogenic toughness; Kev ua haujlwm txias tuaj yeem qhia qee qhov martensite hauv qee qib, txo cov tawv nqaij
Valve stems thiab trim	Txias-Drawn	6-40 hli	Siab hardness txhim kho galling kuj; nruj kam rau ua qhov tseem ceeb rau qia-rau- ntim khoom thiab ntim lub thawv sealing kev ua tau zoo
Architectural / kho kom zoo nkauj bar Tshuag	Txias-Drawn	6-50 hli	Ci ntsa iab tiav tshem tawm cov polishing thib ob hauv ntau qhov xwm txheej; zoo ib yam dimension tseem ceeb rau railings thiab pom structural ntsiab

Qhov chaw:ASM International Phau Ntawv Qhia Volume 1 (Daim ntawv qhia kev qhia rau wrought stainless hlau); API Standard 682 ' Pumps - Shaft Sealing Systems rau Centrifugal thiab Rotary Pumps' (shaft khoom taw qhia); ASTM A193/A193M 'Standard Specification for Alloy-Steel and Stainless Steel Bolting Materials for High-Tub los yog Siab-Kev Pabcuam Siab' (B8M Class 1 vs Class 2 - annealed vs cold-worked); ASME B31.3 (siab piping tivthaiv xaiv cov khoom siv); Outokumpu 'Stainless Steel Fabrication Handbook' Tshooj 9 (Daim Ntawv Thov Kev Taw Qhia, 2021 tsab).

Lub A193 B8M Bolt Piv txwv: Ib Tus Qauv Txuj Ci Tau Txais Ob Txoj Cai

ASTM A193 / A193M, tus qauv tswj hwm stainless hlau bolting rau siab - kub thiab siab - kev pabcuam siab, muab cov piv txwv qhia txog yuav ua li cas tib qib qib muaj nyob rau hauv ob qho tib si rau kev ua haujlwm sib txawv. Qib B8M Chav Kawm 1 yog kev daws teeb meem-annealed (qhov tseem ceeb yog kub- dov- qhov sib npaug) nrog qhov tsawg kawg nkaus lub zog ntawm 172 MPa. Qib B8M Chav Kawm 2 yog qhov zoo ib yam 316 chemistry tab sis strain-hardened (txias- ua haujlwm) kom ua tiav qhov tsawg kawg nkaus lub zog ntawm 690 MPa - nce 4 ×.

Chav Kawm 2 bolting tau teev tias qhov muaj peev xwm ntau dua yog xav tau yam tsis muaj txoj kab uas hla txoj kab uas hla, tab sis nws tau txwv rau cov kab me me thiab tau txo cov ductility piv rau Chav Kawm 1. Cov qauv no qhia tau hais tias, nyob rau hauv ib tsev neeg cov khoom, tib lub hauv paus kub - dov - sib npaug vs txias - ua hauj lwm luam tawm- tawm hauv phau ntawv qhia no.

Cov khoom siv raw cov nqi sib piv uas tsuas yog saib ntawm tus nqi ib kilogram yog qhov ua yuam kev rau qhov kub - dov piv rau txias - kos bar xaiv. Kev sib piv tus nqi raug yuav tsum suav nrog cov nqi qis qis, uas feem ntau yog qhov loj dua ntawm tag nrho cov nqi rau cov khoom siv precision.

Cold-Drawn Bar Cost

Table 6: Nqi thiab Lead-Lub Sijhawm Sib Piv - Kub-Rolled vs Cold-Drawn Stainless Hlau Round Bar

Qhov xwm txheej	Kub-Rolled (HR)	Txias-Drawn (CD)
Tus nqi ntawm cov khoom siv txheeb ze (ib kg, tib qib)	Lub hauv paus (1.0 ×)	1.15–1.40 × HR tus nqi (cov nqi kos duab ntxiv)
Downstream machining nqi	Siab dua - xav tau kev tshem tawm cov khoom lag luam ntxiv kom ncav cuag qhov siab ntev thiab ua tiav	qis dua - nruj dua li -muab kam rau ua txo lub sij hawm machining los ntawm 15–40%
Tag nrho cov nqi nruab rau precision qhov chaw	Feem ntau siab dua tag nrho vim lub sijhawm machining txawm tias tus nqi raw khoom qis dua	Feem ntau qis dua rau qhov siab - ntim qhov tseeb txawm tias tus nqi raw khoom ntau dua
Standard loj muaj / lub sij hawm ua	Dav dav hauv ntau qhov ntau thiab tsawg; 1-2 lub lis piam ua ntej lub sij hawm raug	Dav dav txog li ~ 100 hli; 1-3 lub lis piam ua ntej; loj diameters xav tau kev txiav txim tshwj xeeb
Yam tsawg kawg nkaus kom muaj nuj nqis (kev cai loj)	Feem ntau qis MOQ; dov mills tuaj yeem khiav me me kev txiav txim	Feem ntau siab dua MOQ; kos lub rooj ntev zaum teeb tus nqi nyiam kev tsim khoom loj dua
Qhov ntau thiab tsawg ntawm kev lag luam muaj	6 hli mus rau 500+ hli txoj kab uas hla	3 hli mus rau kwv yees li 100-150 hli txoj kab uas hla (txheej txheem thiab nyiaj txiag txwv)

Qhov chaw:Kev lag luam tus nqi benchmarking thoob stainless hlau bar distributors (2024-2025 cov ntaub ntawv); machining lub sij hawm kawm los ntawm CNC kev tsim cov txheej txheem kev npaj cov ntaub ntawv (tseem ceeb lub sij hawm tshem tawm ib tug ASME Y14.5 kam rau ua bands); Outokumpu thiab Sandvik distributor price lists (2024); JN Alloy tus nqi sab hauv- sib piv cov ntaub ntawv los ntawm cov neeg siv khoom tag nrho-tus nqi- ntawm- kev txheeb xyuas tswv cuab (tsis qhia npe, 2023-2024).

Tus nqi tag nrho ntawm cov tswv cuab txoj cai: Rau qis- ntim, loj- txoj kab uas hla, lossis tsis yog- daim ntawv thov raug, kub- dov bar tus nqi raw khoom qis dua dominates thiab HR yog qhov kev xaiv pheej yig dua. Rau siab - ntim, precision- cov khoom siv ua haujlwm qhov kev ua siab ntev thiab qhov chaw tiav txo lossis tshem tawm cov haujlwm ua haujlwm, txias- kos bar tus nqi raw khoom ntau dua li offset los ntawm kev txuag lub sij hawm, ua CD tus nqi qis dua - tus nqi xaiv txawm tias nws siab dua rau - kilogram nqi. Kev tsim kom raug- lossis- kev yuav thiab kev xaiv cov khoom siv yuav tsum xam tag nrho tus nqi ntawm ib feem ua tiav, tsis yog tus nqi raw khoom rau ib kilogram, rau ib daim ntawv thov uas tsim muaj txiaj ntsig ntim.

A: Tsis yog. Machining (tig, milling) tshem tawm cov khoom siv tab sis tsis qhia txog kev ua haujlwm txias (strain hardening) uas ua rau txias - rub bar nws lub zog siab dua thiab nyuaj dua. Qhov kub-rolled bar uas yog machined mus rau qhov kawg dimension yuav khaws kub-rolled (annealed) txhua yam khoom thoob plaws hauv - nws yuav tsuas yog ib tug me me - txoj kab uas hla version ntawm tib mos, ductile khoom. Txhawm rau ua kom txias -cov khoom ua haujlwm ntawm qhov kub uas twb muaj lawm- dov ib feem, qhov sib cais txias- ua haujlwm xws li txias dov, swaging, lossis nto dov (burnishing) yuav tsum tau siv, thiab cov txheej txheem no muaj cov yam ntxwv sib txawv los ntawm -bar txias kos duab. Yog tias txias- kos cov cuab yeej cuab tam yuav tsum tau, cov khoom lag luam bar nws tus kheej yuav tsum tau yuav hauv qhov txias - kos duab.

Q: Puas yog txias- kos stainless hlau bar sib nqus?

A: Austenitic stainless hlau qib (304L, 316L) yog qhov tseem ceeb tsis yog -sib nqus nyob rau hauv annealed (kub- dov) mob vim lawv lub ntsej muag -centred cubic crystal qauv. Txawm li cas los xij, kev ua haujlwm txias tseem ceeb tuaj yeem ua rau muaj kev hloov pauv mus rau magnetic martensite hauv qee qib austenitic - tshwj xeeb tshaj yog 304/304L, uas muaj cov ntsiab lus nickel qis dua thiab yog metastable. Qhov no txhais tau tias txias heev-kos 304L bar yuav qhia tau tias muaj zog sib nqus permeability ntau dua li qub qib hauv kub-rolled mob, qee zaum ua tsis muaj zog hlau nplaum ntawm cov qib siab. Qib 316L, nrog nws cov ntsiab lus nickel thiab molybdenum siab dua, muaj kev ruaj khov dua thiab qhia cov lus teb sib nqus me me txawm tias tom qab kos duab txias. Rau cov ntawv thov uas yuav tsum tau nruj tsis yog{16}} cov khoom sib nqus (qee yam khoom siv kho mob, cov khoom siv hluav taws xob hauv tsev, kev siv tub rog), qhia kub-rolled/annealed 316L thiab txheeb xyuas qhov sib nqus permeability ntawm cov khoom siv kuaj yog tias qhov kev xav tau.

Q: Vim li cas cov khaub thuas- kos bar muaj qhov ua tau zoo dua txawm tias nyuaj dua?

A: Qhov no zoo li counterintuitive - cov ntaub ntawv nyuaj yog feem ntau xav tias yuav nyuaj rau tshuab. Txawm li cas los xij, rau austenitic stainless hlau tshwj xeeb, qhov softness thiab siab ductility ntawm kub - dov (annealed) mob tiag tiag ua rau cov teeb meem machining: cov hlau nyhav smear, gall, thiab tsim ib tug ua - nce ntug ntawm cov cuab yeej txiav es tsis shearing huv si, ua rau tsis zoo nto tag thiab ceev cov cuab yeej siv. Qhov nruab nrab hardness nce los ntawm kev kos duab txias (feem ntau mus rau 200-260 HB los ntawm 150-190 HB) hloov cov khoom siv tus cwj pwm mus rau kev tsim cov chips huv thiab txo qis ua - nce ntug nyiam, thaum tseem tshuav zoo nyob rau hauv machinable hardness ntau yam. Qhov no yog vim li cas ntau lub khw muag khoom tshwj xeeb thov txias - kos bar txawm tias qhov kawg ntawm qhov ntev tsis tas yuav tsum muaj kev ua siab ntev dua - nkaus xwb rau cov txiaj ntsig zoo machining.

Q: Dab tsi yog qhov siab tshaj plaws ua haujlwm txias txo feem ntau siv rau stainless hlau round bar?

A: Kev lag luam txias- kos stainless hlau puag ncig bar feem ntau dhau ib daim duab kos nrog 10-25% txo qis hauv cross-sectional cheeb tsam los ntawm kub- dov pib Tshuag. Qee qhov tshwj xeeb siab -lub zog txias- cov khoom siv kos duab siv ntau daim duab hla nrog cov txheej txheem nruab nrab annealing kom ua tiav qhov txo qis dua (txog li 40–50% cumulative) thaum tswj qhov nce ntxiv dag zog thiab kev pheej hmoo ntawm pob txha raws li cov khoom siv ua haujlwm - hardens. Tshaj li kwv yees li 30% kev ua haujlwm txias txias yam tsis muaj qhov nruab nrab annealing, austenitic stainless hlau ua nyuaj rau kos vim muaj zog ceev, thiab kev pheej hmoo ntawm pob tawg thaum lub sij hawm kos duab nce ntau. Feem ntau cov qauv kev lag luam txias- kos bar ua tiav qhov raug 1.8–2.2 × tawm lub zog nce ntxiv uas tau sau tseg hauv phau ntawv qhia no qhia txog ib qho kev txo qis hauv cheeb tsam 15-20%.
