Chloride pitting yog ib qho laj thawj feem ntau yog vim li cas cov khoom siv stainless hlau tsis ua haujlwm hauv dej hiav txwv, thiab txoj kev ceev tshaj plaws los txiav txim seb cov hlau puas yuav muaj sia nyob nws yog tus lej hu ua PREN.Inconel 625 (UNS N06625) Cov.tshaj tawm PREN ntawm kwv yees li 51 - ntau dua ob npaug ntawm 316L stainless hlau thiab yooj yim tshaj txhua qhov kev lees paub dav dav rau kev tso dej hiav txwv puv. Kab lus no qhia tau hais tias tus lej raug suav li cas, yuav ua li cas 625 piv nrog txhua chav sib tw alloy, nws cov ntaub ntawv tseem ceeb pitting kub (CPT) txhais li cas hauv kev xyaum, thiab qhov twg nws qhov kev txwv tiag tiag yog - kom cov engineers, buyers, thiab specifications sau cov zauv muaj kev ntseeg siab.

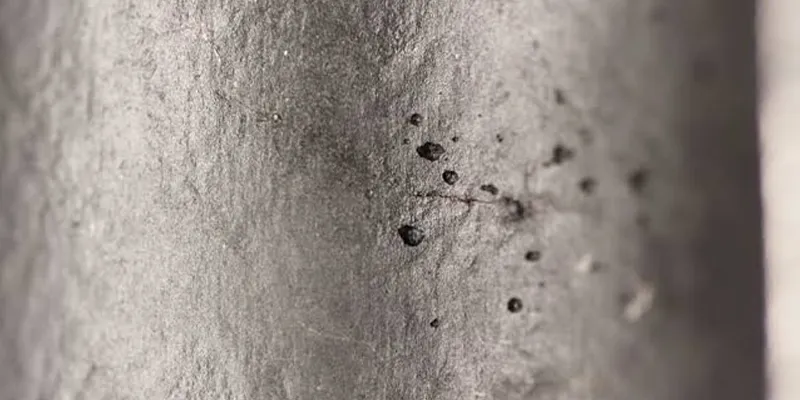

Chloride Pitting yog dab tsi, thiab Vim li cas thiaj txaus ntshai nyob rau hauv Seawater?
Chloride pitting yog ib qho chaw tawg ntawm ib qho alloy tiv thaiv zaj duab xis los ntawm chloride ions, tsim cov me me, qhov tob tob uas tuaj yeem perforate cov cuab yeej nrawm dua li cov corrosion tsis zoo ib yam li - thiab cov dej hiav txwv yog qhov muaj ntau tshaj plaws ntawm cov chloride ions uas tsav nws.
Feem ntau cov corrosion-resistant alloys ciaj sia tsis yog vim lawv muaj tshuaj inert, tab sis vim hais tias lawv spontaneously loj hlob ib tug ultra- nyias, nws tus kheej- kho oxide txheej - cov zaj duab xis passive - uas thaiv ntxiv kev tawm tsam. Hauv qhov tsis muaj zog lossis qis dua - dej oxygen, chlorides (Cl⁻) tawm tsam cov yeeb yaj kiab los ntawm cov txheej txheem tshwj xeeb:
- Zaj duab xis tua:cov chloride ion me me adsorbs mus rau oxide nto thiab sib tw nrog cov pa oxygen ntawm cov ntsiab lus tsis muaj zog - suav nrog, khawb, MnS stringers, weld defects;
- Autocatalysis:ib zaug ib qho kev ua txhaum microscopic qhib, yaj cov hlau ions hydrolyze hauv nws, tso H⁺ thiab xa rov qab cov pH hauv zos rau cov nqi qis li 0-1, thaum cov chloride ions nkag mus rau hauv kom sib npaug;
- Kev nthuav dav:lub qhov dej tam sim no muaj nws cov concentrated hydrochloric acid, yog li nws tob zuj zus ntawm tus nqi nrawm txawm tias qhov chaw nyob ib puag ncig nyob kaj lug thiab tsis zoo.
Qhov no yog qhov ua rau pitting tshwj xeeb txaus ntshai. Tag nrho qhov hnyav tuaj yeem ua tsis tiav - ob peb milligrams - thaum lub pinhole nkag mus rau 5 hli yeeb nkab phab ntsa hauv lub hlis. Kev ua tsis tiav tau muab zais, tam sim ntawd, thiab xau- ua ntej - ceeb toom. Cov dej hiav txwv muaj kwv yees li 19,000–20,000 mg / L ntawm cov tshuaj chloride (kwv yees li 3.5% tag nrho cov ntsev), uas yog vim li cas xaiv cov khoom siv rau kev pabcuam hauv hiav txwv yog ib lo lus nug: cov hlau no puas tuaj yeem tiv taus cov tshuaj chloride pitting - thiab ntev npaum li cas, ntawm qhov kub thiab txias, thiab nyob rau hauv dab tsi geometry?
PREN yog dab tsi, thiab nws suav li cas?
PREN - Pitting Resistance Equivalent Number - yog ib qho -daim duab Performance index uas ranks ib qho alloy tsis kam rau chloride qhov pib pib. Tus qauv qauv yog PREN=%Cr + 3.3 × %Mo + 16 × %N.
Cov mis yog empirical: nws yog tsim los ntawm correlating alloy muaj pes tsawg leeg nrog ntsuas qhov tseem ceeb pitting kub nyob rau hauv lub stainless steel tsev neeg. Txhua lub ntsiab lus khwv tau nws cov coefficient rau ib qho tshwj xeeb, zoo - nkag siab vim li cas:
- Cr (coefficient 1.0):chromium yog tus txha caj qaum ntawm Cr₂O₃ zaj duab xis passive; ntau chromium txhais tau hais tias lub thicker, ruaj khov barrier uas kho sai dua tom qab kev puas tsuaj.
- Mo (coefficient 3.3):molybdenum yog qhov muaj zog tshaj plaws ib leeg tiv thaiv chlorides. Nws slows zaj duab xis dissolution, speeds repassivation ntawm incipient pits, thiab enriches cov chemistry nyob rau hauv ib lub qhov, yog li nws tsis yooj yim rau tuav lub autocatalytic voj voog. Qhov no yog vim li cas Mo nqa 3.3 tus lej sib npaug.
- N (coefficient 16):nitrogen dissolves rau hauv lub alloy nto thaum lub sij hawm repassivation, tsa lub zos pH nyob rau hauv ib tug tsim lub qhov, thiab ua synergistically nrog Mo.
Ob qhov sib txawv tseem ceeb hauv kev xyaum. Rau tungsten-cov kabmob alloys xws li Hastelloy C-276, ntau tus engineers siv cov qauv txuas ntxiv PREN=%Cr + 3.3 × %Mo + 16 × %N + 1.65 × %W. Thiab nws yuav tsum tau hais meej meej: PREN tau calibrated ntawm stainless hlau. Siv rau cov khoom siv -tshuaj nickel alloys nws ua haujlwm zoo raws li cov cuab yeej sib piv, tab sis nws tsis ntes txhua yam - qhov tseem ceeb tshaj plaws, nws tsis quav ntsej cov nickel matrix nws tus kheej, uas yog siab dua ntawm cov acidic pit chemistry dua li cov hlau matrix. Ib qho nickel alloy yog li ntawd nyiam tawm- ua nws PREN hauv kev pabcuam chloride tiag tiag, tsis ua raws li nws.
PREN ntawm Inconel 625 yog dab tsi?
Siv cov qauv qauv ntawm ASTM B443 muaj pes tsawg leeg txwv, Inconel 625's PREN yog kwv yees li 47–56, nrog rau tus nqi nominal ntawm kwv yees li 51. Qhov ntawd tso nws ruaj khov nyob rau sab saum toj ntawm cov khoom lag luam muaj tshuaj chloride-resistant alloys.
Inconel 625 yog teev nyob rau hauv ASTM B443 (phaj, ntawv, sawb) thiab B444/B446 (tube, bar) nrog rau cov nram qab no tswj muaj pes tsawg leeg:
|
Element |
ASTM B443 txwv (wt.%) |
Nominal (wt.%) |
Lub luag haujlwm hauv chloride kuj |
|
Nickel (Ni) |
Ntau dua lossis sib npaug rau 58.0 (sib npaug) |
~61 |
Matrix: resists acidic pit chemistry; tiv thaiv chloride kev nyuaj siab corrosion cracking |
|
Chromium (Cr) |
20.0–23.0 |
21.5 |
Cov ntaub ntawv thiab stabilizes passive oxide zaj duab xis |
|
Molybdenum (hli) |
8.0–10.0 |
9.0 |
Primary pitting inhibitor; repassivation txhawb nqa |
|
Niobium + Tantalum (Nb + Ta) |
3.15–4.15 |
3.6 |
Khoom-kev daws teeb meem, weldability; tsis yog PREN element |
|
Hlau (Fe) |
Tsawg dua lossis sib npaug li 5.0 |
~2.5 |
Cov seem; khaws cia qis |
|
Cov pa roj carbon (C) |
Tsawg dua lossis sib npaug rau 0.10 (Qib 1) |
~0.05 |
Khaws qis kom tsis txhob hnov qab |
|
Nitrogen (N) |
trace (tsawg dua lossis sib npaug rau ~ 0.05) |
<0.02 |
Tsis pom zoo PREN pab hauv Ni alloys |
Kev suav yog ces ncaj nraim, ua haujlwm los ntawm cov kev txwv tshwj xeeb:
|
Hauv paus |
Kev suav |
PREN |
|
Specification yam tsawg kawg nkaus |
20.0 + 3.3 × 8.0 + 0 |
= 46.4 |
|
Hom zeb chemistry |
21.5 + 3.3 × 9.0 + ~0 |
≈ 51 |
|
Specification siab tshaj plaws |
23.0 + 3.3 × 10.0 + 0 |
= 56.0 |
Peb qhov kev tsim nyog ncaj ncees muaj nyob rau hauv ib qho kev sib tham nruj. Ua ntej, nitrogen tam sim no tsuas yog raws li ib qho seem seem hauv 625, yog li nws ntxiv feem ntau ntawm ib feem ntawm qhov taw tes - tsis zoo li hauv super duplex steels, qhov twg nitrogen yog ib qho kev sib koom ua ke ntxiv tsim nyog rau ntau lub ntsiab lus PREN. Thib ob, niobium - 625 lub cim kos npe - tsis suav nrog PREN txhua, vim Nb tsis koom nrog Cr–Mo passive- zaj duab xis chemistry qhov ntsuas ntsuas; nws yog nyob ntawd rau siab - kub lub zog thiab weld soundness. Thib peb, 625 tsis muaj tungsten, yog li qhov txuas ntxiv (W-cov kabmob) PREN cov qauv rov qab zoo li qub. Ntawm ib qho kev sib txawv ntawm cov qauv tsim nyog, Inconel 625 thaj av nruab nrab ntawm kwv yees li 47 thiab 56, thiab "txog 51" yog tus lej tiv thaiv ib leeg los hais.
Yuav Ua Li Cas Inconel 625's PREN Sib piv nrog Lwm Cov Corrosion-Resistant Alloys?
Ntawm PREN ≈ 51, Inconel 625 outperforms txhua txhua stainless hlau - suav nrog super duplex 2507 - thiab yuav luag txhua lub ntsiab nickel alloy. Tsuas yog molybdenum- thiab tungsten- cov qib nplua nuj xws li Hastelloy C-276 qib siab dua.
|
Alloy (UNS) |
Cr (%) |
Mo (%) |
PREN (tus qauv) |
Kev txiav txim siab dej hiav txwv |
|
316L (S31603) |
17 |
2.1 |
≈ 24 |
Cov qhov dej hauv cov dej hiav txwv ambient - tsis tsim nyog rau immersion |
|
Alloy 20 (N08020) |
20 |
2.5 |
≈ 29 |
Sulfuric acid kws tshwj xeeb; tsis yog seawater pitting alloy |
|
825 (N08825) |
21.5 |
3.0 |
≈ 31 |
Zoo dav corrosion alloy; marginal nyob rau hauv stagnant seawater |
|
904L (N08904) |
21 |
4.5 |
≈ 36 |
Resistant ambient seawater rau ntawm qhov chaw du; crevice txaus ntshai |
|
Duplex 2205 (S32205) |
22 |
3.2 |
≈ 35 |
Zoo ib yam li 904L; zoo zog, crevice ceev faj |
|
Super duplex 2507 (S32750) |
25 |
4.0 |
≈ 43 |
Dav siv nyob rau hauv ambient seawater; Muaj kev txwv qhov kub thiab txias |
|
Monel 400 (N04400) |
- |
- |
≈ 0* |
Zoo heev hauv cov dej hiav txwv ntws los ntawm kev sib txawv; pits thaum nyob twj ywm * |
|
Tom ntej: Inconel 625 (N06625) |
21.5 |
9.0 |
≈ 51 |
Kev tiv thaiv zoo rau pitting hla cov dej hiav txwv ntuj |
|
Hastelloy C-276 (N10276) |
16 |
16 |
≈ 68 (≈74 nrog W) |
Sab saum toj qib; teev rau kub, concentrated chloride brine |
*Monel 400tsim nyog cov lus hauv qab no vim tias nws tus lej tsis raug: raws li tooj liab-nickel alloy nrog qhov tseem ceeb tsis muaj chromium lossis molybdenum, nws PREN yog zero, tab sis nws ua tau zoo heev hauv cov dej hiav txwv ntws los ntawm kev tiv thaiv sib txawv. Txawm li cas los xij, hauv cov dej hiav txwv tsis tu ncua, Monel 400 paub txog lub qhov dej thiab tsis pom zoo rau creviced, qeeb - kev pabcuam ntws. PREN qeb duas - pib tiv thaiv nyob rau hauv Cr–Mo passive- zaj duab xis tsev neeg ntawm alloys; ib txwm nyeem nws nrog rau cov alloy tus kheej tus cwj pwm corrosion.
Qhov kev sib piv kuj understates 625 nyob rau hauv ib qho kev hwm uas tsim nyog hais: vim PREN tau ntsuas ntawm cov hlau -raws li alloys, nws tsis tuaj yeem credit 625's ~ 58-61% nickel matrix, uas tiv taus cov acidic pit chemistry uas propagates pits hauv stainless hlau. Hauv kev paub dhau los, Inconel 625 hauv cov dej hiav txwv ntuj coj zoo dua li nws qhov zoo dua PREN, hais tias, 2507 yuav qhia - tshwj xeeb tshaj yog thaum cov chlorides ua ke nrog H₂S, CO₂, lossis kub siab hauv kev pabcuam oilfield.

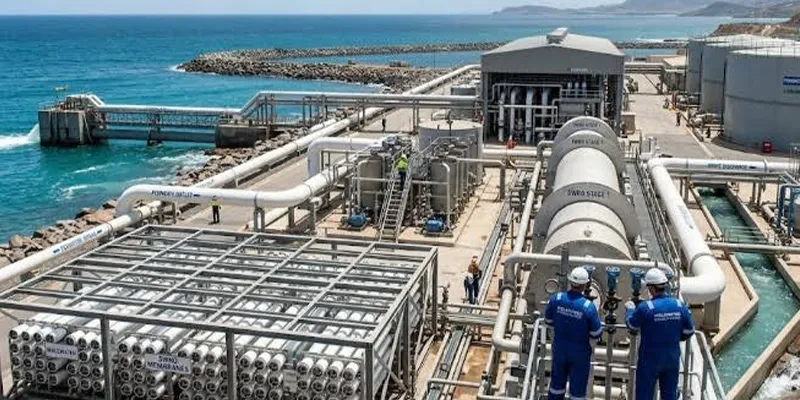

Dab tsi PREN Thresholds Yuav tsum Engineers siv rau Seawater Service?
Cov kev cai ua haujlwm siv thoob plaws ntug dej hiav txwv thiab marine engineering yog: PREN hauv qab no ~ 32 tsis tsim nyog rau cov dej hiav txwv stagnant; PREN Ntau dua los yog sib npaug rau 40 yog qhov kev lees paub dav dav rau kev ntseeg siab pitting tsis kam nyob rau hauv ib puag ncig - dej hiav txwv kub nrog rau cov pob qij txha creviced; thiab PREN Ntau dua lossis sib npaug li 45 muab cov npoo rau nce siab -kub lossis siab dua - chloride lub luag haujlwm. Inconel 625, ntawm ≈51, tshem tawm txhua qhov chaw pib nrog chav nyob.
Cov theem pib no yog cov cai ntawm tus ntiv tes xoo distilled los ntawm kaum xyoo ntawm kev kuaj dej hiav txwv thiab kev ua haujlwm sab nrauv, tsis lav. Siv kom raug, lawv faib cov hlau palette rau hauv cov kab ntshiab:
- Hauv qab no 32:316L (PREN ≈ 24) ua tsis tiav qhov kev sim no tam sim no - nws lub qhov dej -cov ntaub ntawv pitting nyob rau hauv cov dej hiav txwv ambient yog vim li cas nws raug kaw rau atmospheric los yog tag nrho cov dej ntws dej hiav txwv.
- 32–40: 317L, 904L, thiab duplex 2205 (PREN 33–36) muaj sia nyob du, ambient seawater tab sis nyob twj ywm tsis yooj yim ntawm crevices, welds, thiab qhov chaw sov.
- 40–45: super duplex 2507 thiab super austenitics (PREN ~ 40-45) yog tus qauv kev lag luam xaiv rau ambient seawater li qub, pipework, thiab fasteners qhov twg crevices tswj.
- Tshaj 45:Inconel 625 (≈51) raug xaiv thaum pitting yuav tsum raug tsim tawm tag nrho, thaum tsis tuaj yeem zam qhov crevices thiab kub siab, lossis thaum cov chlorides nrog cov roj qaub (H₂S).
Ib tug nruj specification yeej tsis nres ntawm qhov pib. Kub, chloride concentration, pH, ntws tshaj tawm, crevice geometry, weld zoo, thiab microbiologically cuam tshuam corrosion (MIC) tag nrho cov hloov ntawm tus ciam teb tiag. Rau kev tsim qauv- kev pabcuam tseem ceeb, qhov kev coj ua kom raug yog kom tsim nyog rau daim ntawv tsim khoom tiag tiag los ntawm kev sim - ASTM G48 immersion lossis ASTM G150 electrochemical CPT - ntawm cov khoom siv los ntawm cov khoom tsim, nrog rau kev lees paub sau rau hauv daim ntawv xaj khoom. Qhov no yog raws nraim li cas JN Alloy muab 625 rau hauv subsea thiab tshuaj ua dej num: tau ntawv pov thawj rau ASTM / ASME specs, nrog G48 / G150 thiab NACE MR0175 ua raws cov ntaub ntawv ntawm kev xa khoom.
Inconel 625's Critical Pitting Temperature (CPT) yog dab tsi?
Tshaj tawm CPT qhov tseem ceeb rau Inconel 625 pawg nyob ib ncig ntawm 90-110℃nyob ntawm txoj kev sim thiab cov khoom daim ntawv - kom deb li deb saum toj no 0-40℃ntawm cov dej hiav txwv ntuj uas qhov pib pib ntawm 625 qhov chaw hauv dej hiav txwv tsis yog qhov kev txhawj xeeb tsim tiag.
Qhov tseem ceeb pitting kub yog qhov qis tshaj qhov kub ntawm qhov ruaj khov pits pib ntawm ib qho hlau nto nyob rau hauv ib qho kev ntsuas ntsuas. Saum CPT, pitting ua tau; hauv qab nws, cov alloy repassivates sai dua li lub qhov stabilize. Ob txoj kev tswj hwm: ASTM G48 (immersion hauv acidified 6% ferric chloride, kev ntsuam xyuas nruj) thiab ASTM G150 (electrochemical, uas xa rov qab tus lej meej, rov tsim dua tshiab). Cov txiaj ntsig tau tshaj tawm zoo sib piv raws li hauv qab no:
|
Alloy |
PREN (tus qauv) |
CPT, ASTM G150 (ib txwm qhia) |
CPT, ASTM G48 (ntau tshaj tawm) |
|
316L |
≈ 24 |
15-30 degree |
10-20 degrees |
|
904L |
≈ 36 |
50-60 degree |
40-50 degree |
|
Super duplex 2507 |
≈ 43 |
80-95 degree |
60-75 degree |
|
Ib 625 |
≈ 51 |
~ 100℃lossis siab dua |
85-100 degree |
|
Hastelloy C-276 |
≈ 68–74 |
~ 110℃lossis siab dua |
95-110 degree |
Cov txiaj ntsig zoo sib txawv nrog rau qhov ua tiav, cov khoom tsim, thiab chav kuaj, yog li kho cov no raws li engineering ntau yam tsis tas li. Cov qauv tsim tawm tsis hloov pauv: cov dej hiav txwv ntuj - txawm tias dej hiav txwv dej hiav txwv ntawm 35-40℃- zaum 50-70℃hauv qab 625 lub qhov taub- pib pib. Tus naj npawb tseem ceeb tshaj rau cov neeg tsim qauv yog qhov tseem ceeb ntawm qhov kub thiab txias (CCT), uas yog ib txwm qis dua CPT vim tias kev tiv thaiv crevice chemistry yog nruj dua li qhov chaw du. Tshaj tawm CCT qhov tseem ceeb rau 625 hauv ferric chloride kuaj pawg kwv yees kwv yees li 25-40℃hauv qab nws CPT, piv txwv li, hauv ~ 55-75℃band - tseem zoo siab tshaj qhov dej hiav txwv kub, tab sis yog vim li cas crevice tswj tseem ceeb hauv kev pabcuam kub chloride.
Dab tsi yog Cov Kev Cai Siv Siv Tau ntawm Inconel 625 hauv Seawater thiab Chloride Ib puag ncig?
Thoob plaws tag nrho cov dej hiav txwv dej hiav txwv (0-40 degree), Inconel 625 tsis muaj kev txwv pitting. Nws cov kev txwv tiag tiag tshwm sim nyob rau hauv peb qhov chaw: nruj crevices nyob rau hauv kub chloride kev pab cuam saum toj no roughly 60-70 degree, kub concentrated low-pH brines qhov twg C-276-chav kawm alloys yog qhov kev xaiv raug, thiab welded pob qij txha qhov twg molybdenum microsegregation los yog Laves theem tuaj yeem txo qis hauv zos.
Raws li tus engineer yuav siv lawv, cov kev txwv yog:
- Pitting - tsis muaj kev txwv:Qhov pib ntawm qhov chaw du, kom zoo annealed 625 qhov chaw tsis yog ib qho kev tsis txaus ntseeg hauv cov dej hiav txwv ntuj ntawm qhov kub ntawm dej hiav txwv mus txog. Tsim kev ntseeg siab ntawm no yog tag nrho.
- Crevice corrosion - qhov txwv tiag:crevices nyob rau hauv gaskets, flange ntsej muag, deposits, thiab fouling yog lub limiting geometry. Hauv cov dej kub chloride-cov txheej txheem cov kwj deg (tsis yog ambient seawater), kev tawm tsam tuaj yeem ua tau siab tshaj li 60-70℃; qhia meej crevice- nruj sib koom tsim thiab du tiav.
- Welds - tswj tau:weld hlau tuaj yeem cais molybdenum thiab tsim Nb- nplua nuj Laves theem, hauv zos diluting pitting kuj. Cov txheej txheem vuam tsim nyog (nrog 625 lossis 625 muab tub lim), tswj cov khoom siv hluav taws xob, thiab xa tawm -weld tov anneal qhov ua tau zoo rov qab cov npoo.
- Chemistry txwv:kub, concentrated brines nrog pH qis tshaj ~ 100℃- acid-chloride scrubbers, tej yam dej cawv FGD - yog C-276/C-22 thaj chaw; 625 yog qhov zoo tab sis tsis yog qhov zoo tshaj plaws.
- Kev lag luam - qhov kev txwv ncaj ncees:625 yog tus nqi them nqi tshaj super duplex. Qhov twg ambient seawater, tswj crevices, thiab tsis muaj kev pabcuam qaub
thov, 2507 feem ntau yeej cov ntaub ntawv nyiaj txiag; 625 yeej thaum nws sib xyaw ua ke ntawm sab saum toj -tier chloride tsis kam, lub zog, H₂S kam rau ua, thiab vuam- muaj peev xwm overlay yog yuav tsum tau nyob rau hauv ib qho alloy.
SCC - qhov kom zoo dua, tsis txwv:625 yog qhov tseem ceeb tiv thaiv cov tshuaj chloride kev nyuaj siab- corrosion cracking (Cl-SCC) uas tawg austenitic stainless hlau saum toj no ~ 50-60 degree, ib tug txiav txim kom zoo dua nyob rau hauv kub chloride vapors thiab txaws zones.

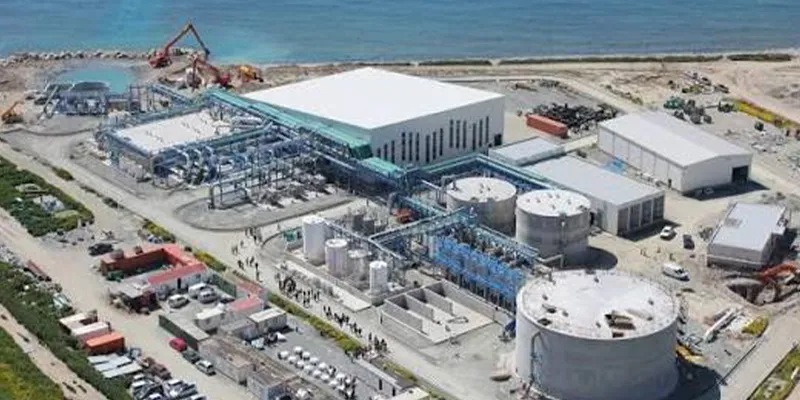

Qhov twg yog Inconel 625 tiag tiag siv hauv Seawater thiab Marine Service?
Inconel 625 yog cov khoom ua haujlwm nickel alloy qhov twg los xij chloride pitting tsis kam thiab siab zog yuav tsum tau ua ke: subsea roj thiab roj khoom, weld overlay cladding ntawm risers thiab pipeline Cheebtsam, seawater twj shafts thiab impellers, tshav kub-exchanger thiab valve trim Cheebtsam, thiab marine fasteners thiab wireline khoom.
Subsea roj & roj:625 weld overlay ntawm carbon-steel riser pob qij txha, flowline spools, thiab subsea li qub ua ke ib tug corrosion{2}} pov thawj cladding nrog structural steel kev lag luam - ib leeg loj tshaj plaws marine siv cov hlau. Weldability yog nws tus kheej 625 superpower: nws yog qhov mus - rau cov hlau muab tub lim (ERNiCrMo-3) rau vuam 625, C-276, 825, thiab cov pob qij txha sib txawv.
Seawater twj thiab shafts:seawater nqa twj, txhaj tshuaj, thiab shafting exploit 625 kev sib xyaw ntawm chloride tiv thaiv kab mob, cavitation tsis kam, thiab siab ncej zog (annealed UTS roughly 830-1,000 MPa, zoo tshaj C-276).
Cov kua qaub + chloride qhov dej:NACE MR0175/ISO 15156 teev 625 rau cov kev pabcuam qaub, yog li nws yog qhov kev xaiv ua ntej uas cov chlorides reservoir, H₂S, thiab CO₂ tshwm sim ua ke - kev sib xyaw ua ke uas tsis tsim nyog feem ntau cov hlau tsis huv.
Marine tshem tawm thiab scrubbers:Cov kab mob kis tau, cov khoom siv hluav taws xob, thiab cov tshuaj txhuam hniav hauv qhov kub, chloride-laden gas kwj, qhov twg Cl-SCC txiav txim tawm 300-series stainless.
Desalination thiab FGD:siab -qhov kub ntawm cov thermal desalination thiab flue gas desulfurization (FGD) systems, thiab seawater-cooled heat exchanger Cheebtsam hauv tshuaj thiab LNG nroj tsuag.
Dab tsi yog Cov Qauv thiab Kev Ntsuas Tswj Inconel 625 hauv Chloride Service?
Khoom chemistry thiab daim ntawv poob rau hauv ASTM B443 (phaj / ntawv / sawb), B444 (tube), thiab B446 (bar), nrog ASME SB sib npaug rau kev ua haujlwm code; chloride kev ua tau zoo yog tsim nyog los ntawm ASTM G48 thiab ASTM G150 kuaj; Kev pabcuam qaub yog tswj hwm los ntawm NACE MR0175 / ISO 15156; thiab xaiv cov ntaub ntawv offshore raug coj los ntawm ISO 21457.
|
Txuj |
Nws tswj hwm dab tsi |
Vim li cas nws tseem ceeb rau kev pabcuam chloride |
|
ASTM B443 / ASME SB-443 Cov Lus Qhia |
Chemistry, txhua yam khoom ntawm 625 phaj, ntawv, sawb |
Kho lub qhov rais Cr/Mo uas lav PREN Ntau dua lossis sib npaug rau ~ 46 |
|
ASTM B444 / B446 |
625 cev |
Cov ntaub ntawv khoom siv rau cov kav dej, shafts, fasteners |
|
ASTM G48 Txoj Kev A-F |
Ferric{0}}Chloride immersion pitting/crevice screening |
Classic txais kev xeem; qhia txoj kev thiab qhov kub thiab txias hauv POs |
|
ASTM G 150 |
Electrochemical CPT ntsuas |
Precise pit- pib qhov kub thiab txias rau cov npoo tsim |
|
NACE MR0175 / ISO 15156 |
Cov khoom siv rau H₂S- muaj ib puag ncig |
Tsim nyog 625 qhov twg chlorides thiab qaub roj coexist |
|
ISO 21457 Kev Tswj Xyuas Kev Lag Luam |
Kev taw qhia txog kev xaiv cov ntaub ntawv offshore |
Lub moj khaum rau seawater system alloy xaiv |
|
AWS A5.14 (ERNiCrMo-3) |
625 welding muab tub lim hlau |
Xyuas kom cov vuam hlau sib tw puag- hlau chloride tsis kam |
Kev ua tau zoo tshaj plaws: yuav tsum tau daim ntawv pov thawj zeb xeem qhia qhov tseeb Cr thiab Mo (yog li cov khoom xa tuaj PREN tuaj yeem kuaj xyuas los ntawm daim ntawv pov thawj), ntxiv rau G48 Txoj Kev A ntawm qhov ntsuas kub thiab NACE MR0175 ua raws li qhov muaj feem xyuam. A PREN xam los ntawm cov ntawv pov thawj chemistry tiag tiag - tsis yog qhov spec range - yog tus lej koj cov ntaub ntawv QA yuav tsum muaj.
Inconel 625 vs. Alternatives: Koj Yuav Xaiv Li Cas Rau Kev Pabcuam Chloride?
Xaiv Inconel 625 thaum koj xav tau sab saum toj -tier chloride tsis kam ua ke nrog lub zog siab, qaub- muaj peev xwm ua haujlwm, thiab weldability li muab tub lim lossis overlay, tag nrho hauv ib qho hlau. Xaiv super duplex 2507 thaum ambient seawater kev ua tau zoo nrog kev tswj crevices txaus thiab tus nqi dominates. Xaiv Hastelloy C-276 rau kub, concentrated, low-pH chloride brines.
|
Kev pabcuam |
Pom zoo alloy |
Kev xav |
|
Ambient seawater, du nto, pob nyiaj- tsav |
Super duplex 2507/904L |
PREN 36–43 txaus; tus nqi qis dua ib kg |
|
Ambient seawater nrog crevices, fouling, los yog MIC txaus ntshai |
Ib 625 |
Crevice margin PREN ≈ 51 yuav; tsis pom qhov pib pib |
|
Seawater + H₂S/CO₂ (kub) |
Ib 625 |
NACE MR0175 npe; stainless qib feem ntau tsis suav nrog |
|
Hot concentrated chloride brine, low pH, >100 degree |
Hastelloy C-276 / C-22 |
PREN 68+ thiab W-bearing film chemistry |
|
Weld overlay / muab tub lim rau cov pob qij txha sib txawv |
Inconel 625 (ERNiCrMo-3) |
Kev lag luam- txheem cladding thiab muab tub lim alloy |
|
Cov dej hiav txwv ntws huv si, tus nqi - tseem ceeb |
Monel 400 los yog CuNi 90/10 |
Tsim nyog nyob rau hauv kev tsiv dej hiav txwv ntawm tus nqi qis dua - kom tsis txhob muaj kev pabcuam |
Ib qho kev ceeb toom kaw rau tus kws sau ntawv tshwj xeeb: tsis txhob sib piv cov alloys ntawm PREN ib leeg hla cov tsev neeg alloy yam tsis tau nyeem cov lus hauv qab. PREN qeb pib ua haujlwm; nws tsis nqi cov npib tsib xee matrix, crevice geometry, weld mob, los yog cracking kuj - thiab cov yog precisely lub qhov ntev ntawm Inconel 625 feem ntau yeej qhov kev sib cav.
Cov lus nug nquag
Kwv yees li ntawm 51 ntawm qhov nominal chemistry - thiab nruab nrab ntawm 47 thiab 56 nyob rau tag nrho ASTM B443 muaj pes tsawg leeg qhov rais (PREN=%Cr + 3.3 × %Mo + 16 × %N, nrog 21.5% Cr thiab 9% Mo raug).
Puas yog PREN ntawm 51 zoo txaus rau dej hiav txwv?
Yog, nrog rau qhov dav dav. Qhov kev lees paub dav dav siv rau kev txhim khu kev qha ambient- qhov kev pabcuam dej hiav txwv kub, suav nrog cov crevices, yog PREN Ntau dua lossis sib npaug li 40; Inconel 625 tshem nws los ntawm kwv yees li 11 ntsiab lus.
Vim li cas niobium tsis suav nrog hauv PREN suav?
Niobium tsis koom nrog hauv chromium–molybdenum passive-film chemistry uas PREN ntsuas. Hauv 625 nws tau ntxiv rau cov khoom siv - kev daws teeb meem ntxiv zog thiab weldability, tsis pitting kuj.
Yuav Inconel 625 qhov hauv dej hiav txwv?
Nyob rau ntawm qhov chaw du, kom zoo annealed ntawm ntuj dej hiav txwv kub (0-40 degree), qhov pib qhov tsis yog hom kev ua tsis tiav. Kev tawm tsam yuav tshwm sim tsuas yog nyob rau hauv nruj crevices nyob rau hauv kub chloride kev pab cuam, feem ntau saum toj no hais txog 60-70 degree.
Dab tsi yog qhov tseem ceeb pitting kub (CPT) ntawm Inconel 625?
Tshaj tawm qhov tseem ceeb nyob ib ncig ntawm 90-110℃nyob ntawm txoj kev sim (ASTM G150 electrochemical qhov tseem ceeb feem ntau ntawm lossis siab dua ~ 100 degree; ASTM G48 qhov tseem ceeb ntawm qhov ntsuas kub ntawm 85-100 degree) - deb tshaj qhov dej hiav txwv kub.
Inconel 625 piv nrog 316L hauv dej hiav txwv li cas?
316L (PREN ≈ 24, CPT ≈ 15–30 degree) pits thiab ua tsis tiav los ntawm perforation nyob rau hauv ambient seawater; Inconel 625 (PREN ≈ 51, CPT ≈ 100 degree) muaj kev tiv thaiv zoo thoob plaws tib yam. Lawv tsis tuaj yeem hloov pauv hauv kev pabcuam marine immersion.
Inconel 625 los yog Hastelloy C-276 rau chloride kev pab - uas zoo dua?
Ob leeg yog saum-tier. C-276 (PREN ≈ 68–74 nrog tungsten) zoo dua hauv cov kub, muaj zog, pH chloride brine; 625 muaj zog dua, yog tus qauv weld muab tub lim / overlay alloy, thiab yog kev lag luam ntau dua qhov nws tsis kam txaus.
Puas yog Monel 400 zoo dua Inconel 625 hauv dej hiav txwv?
Tsis yog - txawv xwb. Monel 400 ua tau zoo nyob rau hauv ceev ceev- dej hiav txwv ntws los ntawm tooj liab- alloy mechanism tab sis paub tias lub qhov dej nyob hauv dej hiav txwv tsis tu ncua thiab muaj zero -zero PREN. Inconel 625 resists pitting nyob rau hauv ob qho tib si ntws thiab stagnant tej yam kev mob.
Puas yog vuam txo Inconel 625's pitting resistance?
Nws tuaj yeem, me ntsis, los ntawm molybdenum microsegregation thiab Laves-theem tsim nyob rau hauv weld hlau. Cov txheej txheem tsim nyog siv qhov sib txuam ERNiCrMo-3 muab tub lim, tswj cov cua sov tawm tswv yim, thiab kev daws teeb meem annealing qhov kev ua tau zoo kom tsis txhob poob qis.
Inconel 625 tuaj yeem tiv taus cov tshuaj chloride li cas?
Ntuj dej hiav txwv (~ 19,000–20,000 mg/L chloride) tsis tas li ntawm qhov kub thiab txias, thiab concentrated brines ntawm nruab nrab kub. Cov kev txwv siv tau yog teem los ntawm qhov kub thiab txias, pH, thiab crevice geometry es tsis yog chloride concentration nws tus kheej.
Puas yog Inconel 625 resistant rau chloride kev nyuaj siab corrosion tawg?
Yog lawm. Nws cov npib tsib xee- nplua nuj, lub ntsej muag-centered-cubic matrix yog qhov tseem ceeb tiv thaiv kab mob transgranular chloride SCC uas tawg austenitic stainless hlau saum toj li 50-60℃- ib qho kev txiav txim siab zoo nyob rau hauv kub chloride vapors thiab txaws cheeb tsam.
PREN puas kwv yees crevice corrosion?
Tsis ncaj. Crevice corrosion pib thaum kub qis dua pitting; siv qhov tseem ceeb ntawm qhov kub thiab txias (CCT) hloov. Rau 625, luam tawm CCT qhov tseem ceeb yog kwv yees li 25-40℃hauv qab nws CPT, piv txwv li, txog 55-75℃hauv kev kuaj ferric chloride.
Qhov siab tshaj plaws dej hiav txwv kub rau Inconel 625 yog dab tsi?
Tsis muaj kev txwv pitting ntawm ntuj dej hiav txwv kub (txawm tias 40℃tropical dej yog ~ 60℃hauv qab 625's CPT). Rau cov txheej txheem kub chloride kwj, tsim tawm tsam crevice saum toj li 60-70 degree.
Puas yog Inconel 625 xav tau kev tiv thaiv cathodic hauv dej hiav txwv?
Tsis yog rau nws tus kheej pitting kuj. Kev tiv thaiv Cathodic yog qee zaum siv cov txheej txheem - dav, lossis los tiv thaiv cov pa roj carbon monoxide, tab sis 625 kho vajtse tsis xav tau nws los tiv thaiv dej hiav txwv.
Yuav ua li cas PREN xam rau duplex thiab super austenitic stainless hlau?
Nrog rau cov mis tib yam - %Cr + 3.3 × %Mo + 16 × %N - tab sis nitrogen yog txhob txwm ua alloying ntxiv nyob rau hauv cov qib (xws li, ~ 0.28% N hauv 2507 ntxiv tshaj 4 PREN cov ntsiab lus), whereas nyob rau hauv 625 nws yog ib tug negligible kab.
Qhov kev ntsuam xyuas twg ua pov thawj cov tshuaj chloride pitting tsis kam - ASTM G48 lossis ASTM G150?
G48 (ferric chloride immersion) yog qhov kev ntsuam xyuas sai thiab kev lees paub; G150 (electrochemical) muab qhov tseeb qhov tseem ceeb pitting kub siv rau kev tsim cov npoo. Cov txheej txheem nruj siv ob qho tib si.
Puas yog Inconel 625 ua raws li NACE MR0175 rau kev pabcuam qaub?
Yog - Inconel 625 tau teev nyob rau hauv NACE MR0175/ISO 15156 rau siv hauv H₂S- muaj ib puag ncig (nyob rau hauv qhov tsim nyog ntawm kev siv), uas yog vim li cas nws dominates subsea hardware qhov twg chlorides thiab qaub roj coexist.
